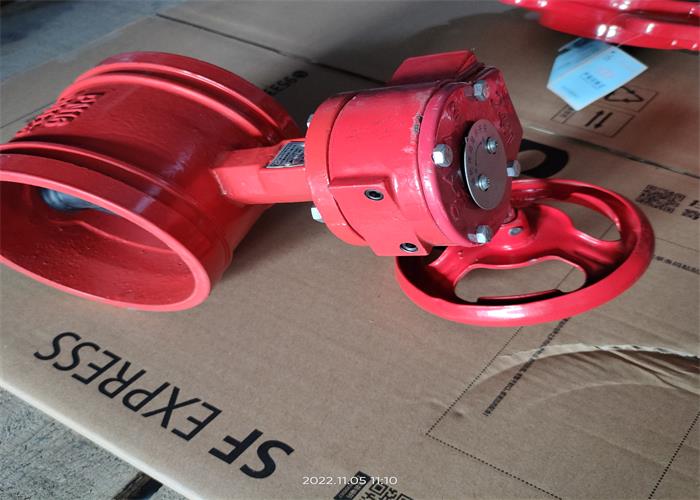

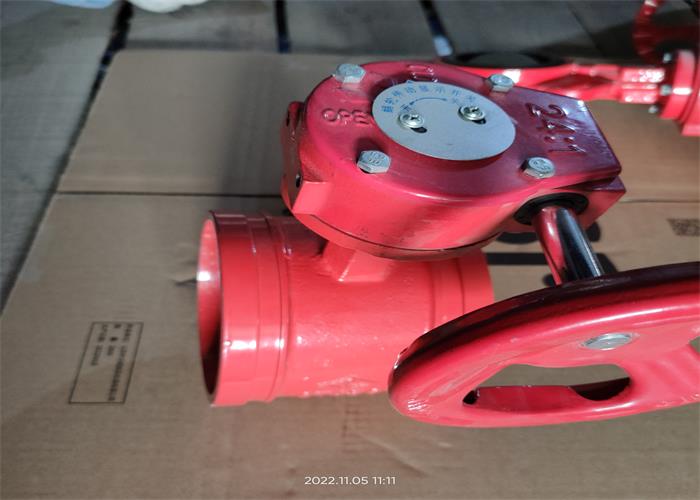

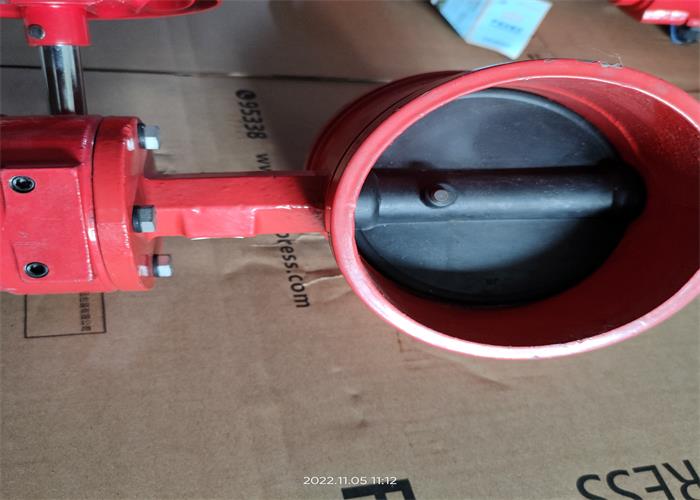

DN100 Mm Red Color Butterfly Valve Water Medium Fire Protection Valves

Usage:

The valve is widely used in various pipelines of water supply and drainage, building fire protection and other systems, especially in the fire pipeline. The valve can be used on the pipeline or equipment with non corrosive medium to intercept, connect and regulate the flow

When the handle of the valve is rotated by 90 °, the valve shaft also rotates. The valve shaft drives the butterfly plate to rotate to open or close. The dial and the handle meet to adjust the flow

Connection size

Material of main parts

Valve characteristics

1. Small size, light weight, light operation.
2. The plate has high strength, large flow area, small flow resistance and energy saving.
3. The medium can flow from both sides of the butterfly plate in any direction to achieve the purpose of connecting or cutting.
4. Small operating torque, labor-saving and lightweight.
5. The number of opening and closing experiments is up to ten thousand times, and the life is long.

Matters needing attention

1. The valve is installed on the pipeline for opening and closing, and can also be used for adjusting and throttling.
2. The valve can be installed in any direction.
3. Pipe and valve cavity should be cleaned before installation.
4. The valve shall not be subjected to large external forces after installation.
5. The valve is installed on the pipeline that is closed for a long time, and should be opened and closed regularly.
6. When the local minimum temperature is lower than 4℃, insulation protection should be done;
7. It is strictly prohibited to install and use in pipelines that bear vibration or rapid changes in medium temperature.
8. The working condition shall be consistent with the requirements in the performance specification

Yuanda Valve Group Co., Ltd., founded in 1994, is headquartered in Yincun, Longyao, Hebei, China, the hinterland of Bohai Economic Rim surrounding Beijing and Tianjin. With a registered capital of RMB 200 million, Yuanda currently has 8 subsidiaries, of which 6 are in China and 2 overseas. Among them, the core company, which covers an area of 540,000m2 and has more than 3500 employees, is the largest high,midium and low-pressure valve manufacturing base specializing in valve development, manufacturing, and sales in China.

Yuanda has obtained DNV·GL, ISO9001: 2015、ISO14001:2015、OHSAS18001:2007, API6D（6D-0759）, CE, KS, and EAC certifications. Its""trademark is evaluated as Famous Trademark of China and Famous Brand in Hebei Province, and the product series produced under"" is a trademark registered in Korea and products produced under this trademark enjoy a good reputation in both international and domestic markets. Yuanda has been named “Credit Management AA-Rating Enterprise” by the General Administration of Quality Supervision, Inspection and Quarantine and granted the title of “China Quality Trustworthy Enterprise” by China Entry and Exit Inspection and Quarantine Association. It is also a holder of Manufacture License of Special Equipment Level A and Casting Certificates Grades B, B1, and B2, and a member of China Valve Association council, a corporate member of China Foundry Association, and a provincial enterprise technology center in Hebei. Yuanda has been granted the power to carry out import and export operations on its own and is an approved supplier of PetroChina (CNPC) and Sinopec, Guodian, Huaneng, Huadian, Datang and China Power, and China Aluminum, CCESCC, Shougang, Wuhan Iron and Steel Company, and Hebei Iron and Steel Company.

Yuanda manufactures to standards including GB/JB(china), ANSI, API, AWWA, DIN, BS, JIS, EAC, NF and so on, and uses HT200, HT250, QT400, QT450, WCA, WCB, WCC, CF3, CF8, CF3M, CF8M, 1Cr5Mo, LCB, among others, to produce a great variety of valves including gate valves, globe valves, ball valves, butterfly valves, check valves, diaphragm valves, pressure-relief valves, plug valves, and traps, which are available in 12 main categories, 200 series and 4000 specs, totaling 120,000 tons a year. These products are widely used in all civil sectors covering petroleum, petrochemical, chemical, power generation, metallurgy, water system, pharmaceuticals, urban construction, and water supply and drainage.
