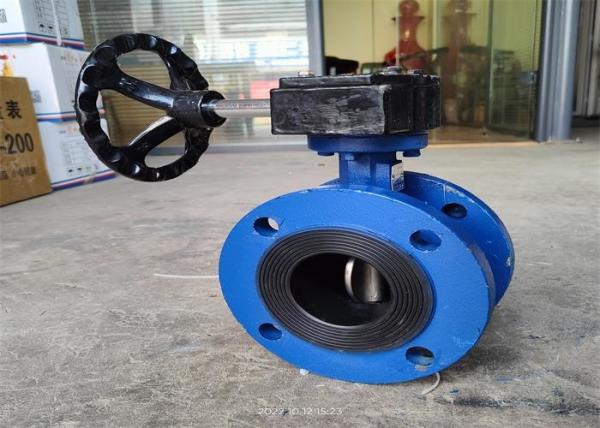

    Turbine Power 100mm Butterfly Flange Valve Grey Iron

    Ask Lasest Price
    Brand Name : Y
    Model Number : D341X-16Q
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000 psc per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

    Turbine Power 100mm Butterfly Flange Valve Grey Iron

    Ductile Iron Material 1.6 Mpa Water Medium 100mm Flanged Butterfly Valve


    Usage:


    This valve is widely used in water supply and drainage, building fire and other systems on all kinds of pipelines, especially in the fire pipeline. This valve can be used in the pipeline or equipment of non-corrosive media, as the interception, connection and regulation of flow.


    Connection size:


    DNLDD1b-fz-Фd
    101610161016
    5010816012519-34-Ф18
    6511218014519-34-Ф18
    8011419516019-38-Ф18
    10012721518019-38-Ф18
    12514024521019-38-Ф18
    15014028024019-38-Ф23
    20015233529520-38-Ф2312-Ф23
    25016539040535035522-312-Ф2312-Ф28
    30017844046040041024.5-412-Ф2312-Ф28
    35019050552046047030-416-Ф2316-Ф28
    40021656558051552532-416-Ф2816-Ф31
    45022261564056558532-420-Ф2820-Ф31
    50022967071562065034-420-Ф2820-Ф34
    60026778084072577036-520-Ф3120-Ф37
    70029289584040-524-Ф31
    800318101595044-524-Ф34

    Main part material


    Part nameMaterial
    BodyGrey iron +NRB,Ductile iron+NRB/EPDM
    DiscQT450-10
    Stem45/2Cr13
    O-RingNBR/EPDM

    Matters needing attention:


    1. The turbine head shall not be used for lifting, and no auxiliary lever shall be added during operation.

    2. The valve shall not be subject to large external force after installation.

    3. When the local minimum temperature is lower than 4 ° C, insulation protection should be done; As the end valve, it should be heated with a pipe or jacket to prevent the temperature of the pipe wall from falling below 0℃.

    4. It is strictly prohibited to install and use in the pipeline under vibration or rapid changes in medium temperature.

    5. The operating conditions shall be consistent with the requirements in the performance specifications.


    The valve features:


    1. Structure size conforms to GB/T12221, small size, light weight, easy to operate.

    2.90 ° operation opens quickly; The plate has high strength, large flow area, small flow resistance and energy saving.

    3. The medium can flow from both sides of the flange disc valve in any direction, which can achieve the purpose of connecting or cutting off.

    4. The operation torque is small, labor saving and lightweight.

    5. The number of opening and closing experiments is more than ten thousand times, with a long life.

    6. Complete sealing is achieved, and the gas leakage is zero.
