    Thread Connect Brass Water Valve 1.6mpa Pressure

    Ask Lasest Price
    Brand Name : Y
    Model Number : Z15W-16T
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 100000 pcs per month
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

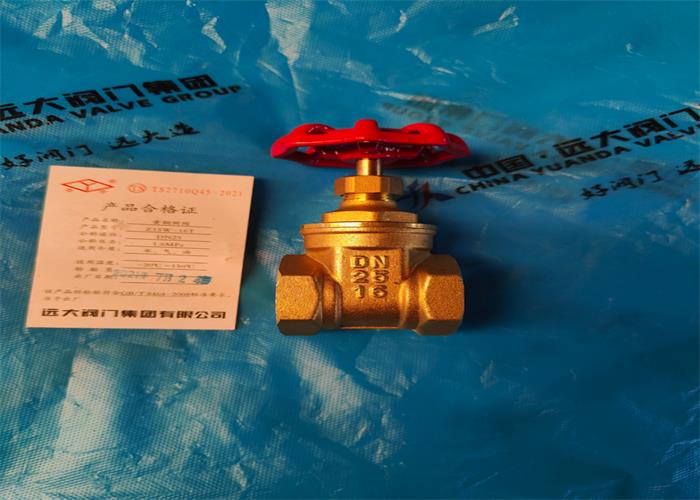

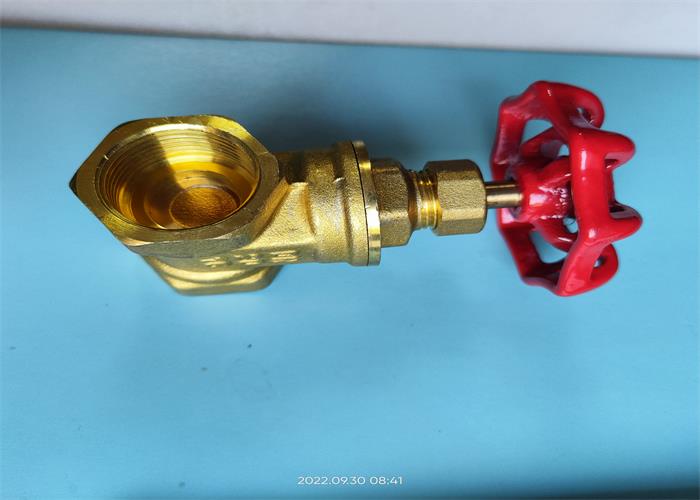

    Thread Connect Brass Water Valve 1.6mpa Pressure

    Thread Connect Gate Valve 1.6mpa Pressure Brass Water Valve


    The working principle of


    This valve is composed of valve body, valve cover, gate plate, valve stem and handwheel. Rotate the handwheel to rotate the valve stem so that the gate can rise or fall to realize opening or closing.


    Connection size


    Gsize(mm)
    LHD0
    1/243.571Φ53
    3/44577Φ59.5
    14985.5Φ59.5
    1 1/455.5105.5Φ73.5
    1 1/259113.5Φ73.5
    263130Φ78

    Main part material


    Part nameMaterial
    Body/ BonnetBrass
    HandwheelGrey iron
    DiscBrass
    StemBrass

    Major performance specifications


    Type

    Pressure

    (MPa)

    Testing pressuretemperature℃Medium

    Shell (water

    MPa

    seal (water)

    MPa

    Z15W-16T1.62.40.6-20~150℃Water/ Indoor gas

    Precautions for storage, installation and use


    1. This valve is kept in a dry warehouse, and is strictly prohibited to be stored in the open air.

    2. Long-term storage, regular maintenance.

    3. Before installation, the pressure test should be carried out to meet the requirements before installation.

    4. The pipe and valve cavity should be cleaned before installation.

    5. The product shall not be subjected to a large external force after installation.

    6. The operating conditions must be consistent with the requirements in the performance specifications.

    7. Turn the handwheel clockwise to close, and vice versa.
