    Two Way Ball Brass Water Valve For Saturated Vapor Lightweight Rustproof

    Ask Lasest Price
    Brand Name : Y
    Model Number : Q911F-16T
    Price : Negotiable
    Payment Terms : T/T
    Supply Ability : 10000 pcs per year
    Delivery Time : 5-8 work days
    • Product Details
    • Company Profile

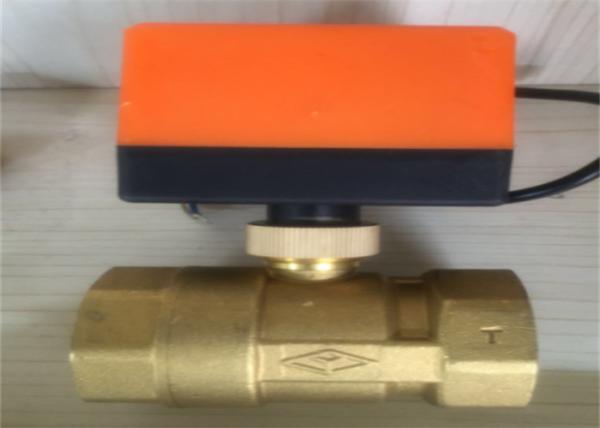

    Two Way Ball Brass Water Valve For Saturated Vapor Lightweight Rustproof

    Internal Thread Electric Two-Way Ball Valve 1.6 Mpa Brass Water Valve


    Usage:


    This series of valves is suitable for working medium for water, non-corrosive liquid, air, saturated vapor etc.


    Precautions for storage, installation and use


    1. The valve is stored in a dry warehouse, and it is strictly forbidden to store it in the open air.
    2. Long-term storage should be maintained regularly.
    3. This product can be installed in any position of the pipeline and any pipeline, and the working conditions should be consistent with the requirements in the performance specification.
    4. A pressure test should be carried out before installation, and installation can only be done if it meets the requirements.
    5. Before installation, the inner cavity of the pipe and valve should be cleaned up.
    6. After the product is installed, it should not be subjected to large external force.
    7. The direction of the handle should be consistent with the direction of the groove of the square head of the valve stem.

    Part name and material


    BodyHpb59-1
    O-Ringsilica gel
    seatPTFE
    ballHpb58-2
    bonnetHpb59-1

    Feature


    pressure standardGB/T 13927-2008
    pressure1.6 mpa
    working tempreature1℃~95 ℃
    Sheel test (water)2.4 mpa
    seal test (air)0.6mpa
    waterwater

    Dimension


    DNLAHL1
    15501/27670
    20593/47970
    256718270
    32771 1/412270
    40831 1/212470
    5098213270

    Two Way Ball Brass Water Valve For Saturated Vapor Lightweight RustproofTwo Way Ball Brass Water Valve For Saturated Vapor Lightweight Rustproof
