Cast Iron Lifting Bottom Valve Pressure 2.5 Mpa Flanged Swing Check Valve

Structure and action principle:

H42x-2.5 is a flange connected lifting bottom valve; H45x-2.5 flange connected multi disc swing bottom valve; H46x-2.5 is a flange connected double disc swing bottom valve; H12x-2.5 is a lifting bottom valve with internal thread connection. They are composed of valve body, valve seat, valve disc and sealing gasket

The valve uses the suction force of the pump to generate negative pressure. The atmospheric pressure puts the water pressure into the suction pipe of the pump to open the valve. When stopping the pump, use the water column pressure and the self weight of the valve disc to close automatically to prevent the backflow of water flow

Precautions for storage, installation and use

1. The valve shall be stored in a dry warehouse and shall not be stored in the open air.

2. The valve shall be maintained regularly for long-term storage.

3. The valve is installed at the bottom of the vertical pipeline of the water inlet pipe of the water pump.

4. Clean the inner cavity of pipes and valves before installation.

5. The operating conditions shall meet the technical requirements in the performance specification

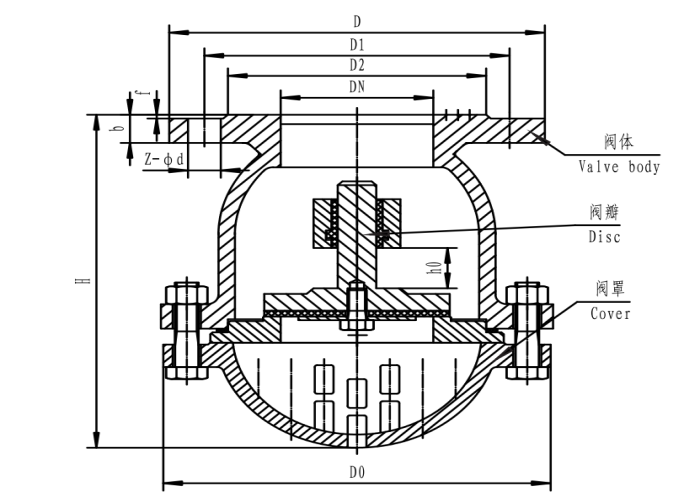

Dimension

Yuanda Valve Group Co., Ltd., founded in 1994, is headquartered in Yincun, Longyao, Hebei, China, the hinterland of Bohai Economic Rim surrounding Beijing and Tianjin. With a registered capital of RMB 200 million, Yuanda currently has 8 subsidiaries, of which 6 are in China and 2 overseas. Among them, the core company, which covers an area of 540,000m2 and has more than 3500 employees, is the largest high,midium and low-pressure valve manufacturing base specializing in valve development, manufacturing, and sales in China.

Yuanda has obtained DNV·GL, ISO9001: 2015、ISO14001:2015、OHSAS18001:2007, API6D（6D-0759）, CE, KS, and EAC certifications. Its""trademark is evaluated as Famous Trademark of China and Famous Brand in Hebei Province, and the product series produced under"" is a trademark registered in Korea and products produced under this trademark enjoy a good reputation in both international and domestic markets. Yuanda has been named “Credit Management AA-Rating Enterprise” by the General Administration of Quality Supervision, Inspection and Quarantine and granted the title of “China Quality Trustworthy Enterprise” by China Entry and Exit Inspection and Quarantine Association. It is also a holder of Manufacture License of Special Equipment Level A and Casting Certificates Grades B, B1, and B2, and a member of China Valve Association council, a corporate member of China Foundry Association, and a provincial enterprise technology center in Hebei. Yuanda has been granted the power to carry out import and export operations on its own and is an approved supplier of PetroChina (CNPC) and Sinopec, Guodian, Huaneng, Huadian, Datang and China Power, and China Aluminum, CCESCC, Shougang, Wuhan Iron and Steel Company, and Hebei Iron and Steel Company.

Yuanda manufactures to standards including GB/JB(china), ANSI, API, AWWA, DIN, BS, JIS, EAC, NF and so on, and uses HT200, HT250, QT400, QT450, WCA, WCB, WCC, CF3, CF8, CF3M, CF8M, 1Cr5Mo, LCB, among others, to produce a great variety of valves including gate valves, globe valves, ball valves, butterfly valves, check valves, diaphragm valves, pressure-relief valves, plug valves, and traps, which are available in 12 main categories, 200 series and 4000 specs, totaling 120,000 tons a year. These products are widely used in all civil sectors covering petroleum, petrochemical, chemical, power generation, metallurgy, water system, pharmaceuticals, urban construction, and water supply and drainage.
