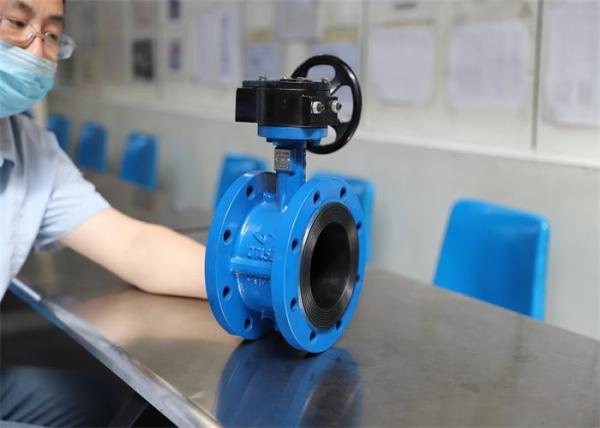

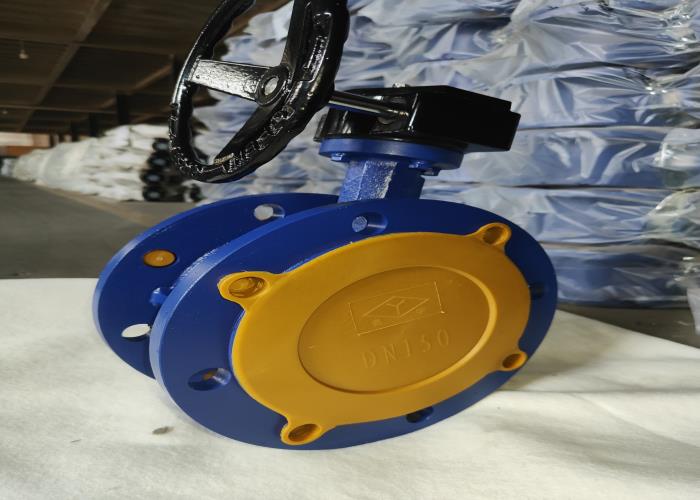

Line NBR Seal Ring Cast Rion Material 125mm Size Flanged Butterfly Valve

Pruduct

The valve is widely used in water supply and drainage, building fire fighting system and other pipelines, especially fire fighting pipelines. The valve can be used in non corrosive medium pipeline or equipment, for closure, connecting and regulating flow.

Standard of adoption:

.Design and manufacture: GB/T 12238 universal valve flange and clamp connection elastic seal butterfly valve
· Structure length: GB/T 12221 metal valve structure length or manufacturer's standard
· Connecting end: JB/T 17241.6 integral cast iron flange
· Inspection and test: GB/T 13927 industrial valve pressure test

Connection size

Main part name and material

Characteristics of valve

1. Structure and size conform to GB/T12221, small size, light weight, easy to operate.
2.90 degrees operation quickly open; The plate has high strength, large flow area, small flow resistance and energy saving.
3. The medium can flow from both sides of the flange disc valve in any direction, can achieve the purpose of connecting or cutting off.
4. Small operating torque, labor-saving and lightweight.
5. The number of opening and closing experiments is up to ten thousand times, and the service life is long.
6. Complete seal, zero gas test leakage.

Precautions

1. The turbine head shall not be used for lifting, and auxiliary levers shall not be added during operation.
2. The valve shall not be subjected to large external forces after installation.
3. When the local minimum temperature is lower than 4 ° C, take insulation protection. As the end valve should be used with pipe or jacket heating, to prevent the pipe wall temperature below 0℃.
4. It is strictly prohibited to install and use in the pipeline under vibration or the rapid change of medium temperature.
5. The operating condition shall be consistent with the requirements in the performance specification.

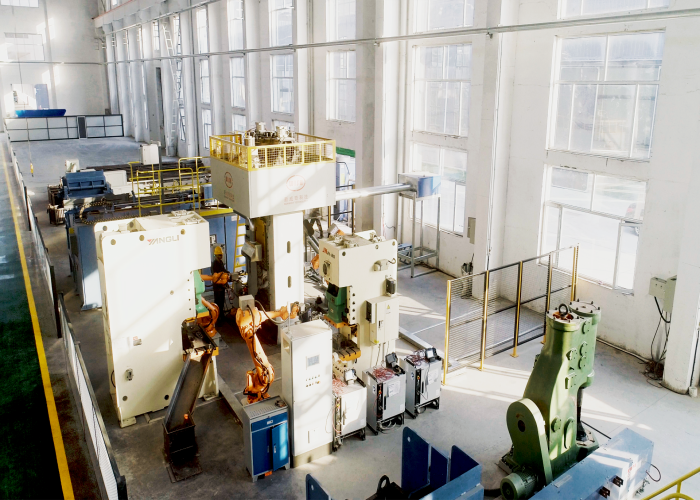

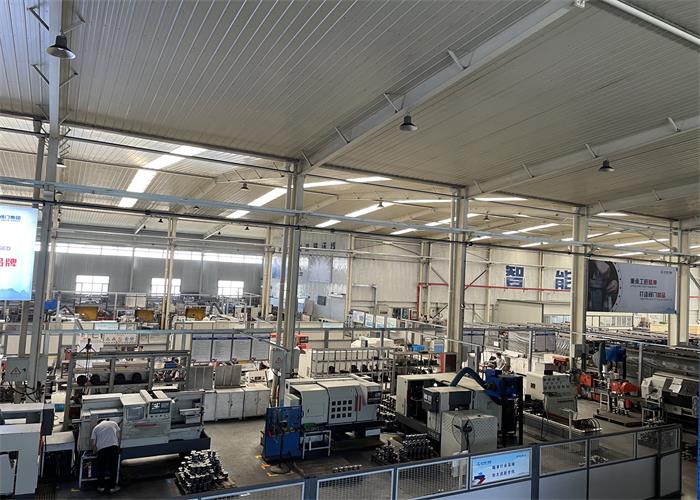

Yuanda Valve Group Co., Ltd., founded in 1994, is headquartered in Yincun, Longyao, Hebei, China, the hinterland of Bohai Economic Rim surrounding Beijing and Tianjin. With a registered capital of RMB 200 million, Yuanda currently has 8 subsidiaries, of which 6 are in China and 2 overseas. Among them, the core company, which covers an area of 540,000m2 and has more than 3500 employees, is the largest high,midium and low-pressure valve manufacturing base specializing in valve development, manufacturing, and sales in China.
