1.6 Mpa Flange End 700X Water Pump Control Valve Water Conservancy Valve

Introduction

700X pump control valve is a check valve installed at the pump outlet of high-rise buildings and other water supply systems to prevent medium backflow. When the water pump is about to stop supplying water. Slowly close about 90% of the valve first to prevent water hammer or water hammer sound caused by sudden pump stop; When the water pump is completely stopped, the valve is completely closed to prevent the backflow of the pumped water and effectively protect the water pump from reverse rotation caused by the impact of backflow. The product is an essential protection device for the outlet of the water pump. The valve is of streamlined design. Accurate opening and closing can be realized through the guidance and control of solenoid valve. The utility model has the advantages of safe and reliable use, effective prevention of water hammer and water hammer sound, long service life and convenient installation and maintenance.

Usage

The water pump control valve can control the water pump s non-return valve. Before the water pump stops working the intake pressure close90%ofmain valve at first, then thethe water pump will automatically syop, and the reserved 10% will be closed by the backwate, which can avoid occurring thewater hammering t is applicable to directly supply water by water pump in plante, mines, enterprises and the high buildings and the water for living pipelinet systems

working principle

When the working valve of the water pump supplies water to the downstream, the solenoid pilot valve is fully opened, the needle valve is adjusted to an appropriate opening, and the upstream water enters the main valve control room through the needle valve and one-way valve and flows out through the solenoid pilot valve. At this time, the pressure in the main valve control room keeps the main valve at an appropriate opening to keep the downstream normal water.

When the water pump stops working, the solenoid pilot valve is closed first, the main valve control room stops drainage, the pressure in the control room rises, and the main valve starts to close. When it is closed to 90%, the upper travel switch of the main valve outputs the pump stop signal and the water pump stops running. At this time, the downstream return water enters the main valve control room through the check valve, the pressure in the control room rises and the main valve is closed.

Main parts and material

Dimension

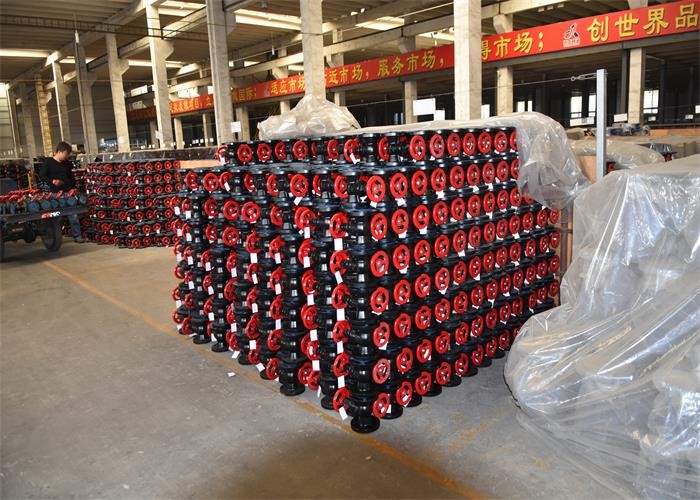

Yuanda Valve Group Co., Ltd., founded in 1994, is headquartered in Yincun, Longyao, Hebei, China, the hinterland of Bohai Economic Rim surrounding Beijing and Tianjin. With a registered capital of RMB 200 million, Yuanda currently has 8 subsidiaries, of which 6 are in China and 2 overseas. Among them, the core company, which covers an area of 540,000m2 and has more than 3500 employees, is the largest high,midium and low-pressure valve manufacturing base specializing in valve development, manufacturing, and sales in China.

Yuanda has obtained DNV·GL, ISO9001: 2015、ISO14001:2015、OHSAS18001:2007, API6D（6D-0759）, CE, KS, and EAC certifications. Its""trademark is evaluated as Famous Trademark of China and Famous Brand in Hebei Province, and the product series produced under"" is a trademark registered in Korea and products produced under this trademark enjoy a good reputation in both international and domestic markets. Yuanda has been named “Credit Management AA-Rating Enterprise” by the General Administration of Quality Supervision, Inspection and Quarantine and granted the title of “China Quality Trustworthy Enterprise” by China Entry and Exit Inspection and Quarantine Association. It is also a holder of Manufacture License of Special Equipment Level A and Casting Certificates Grades B, B1, and B2, and a member of China Valve Association council, a corporate member of China Foundry Association, and a provincial enterprise technology center in Hebei. Yuanda has been granted the power to carry out import and export operations on its own and is an approved supplier of PetroChina (CNPC) and Sinopec, Guodian, Huaneng, Huadian, Datang and China Power, and China Aluminum, CCESCC, Shougang, Wuhan Iron and Steel Company, and Hebei Iron and Steel Company.

Yuanda manufactures to standards including GB/JB(china), ANSI, API, AWWA, DIN, BS, JIS, EAC, NF and so on, and uses HT200, HT250, QT400, QT450, WCA, WCB, WCC, CF3, CF8, CF3M, CF8M, 1Cr5Mo, LCB, among others, to produce a great variety of valves including gate valves, globe valves, ball valves, butterfly valves, check valves, diaphragm valves, pressure-relief valves, plug valves, and traps, which are available in 12 main categories, 200 series and 4000 specs, totaling 120,000 tons a year. These products are widely used in all civil sectors covering petroleum, petrochemical, chemical, power generation, metallurgy, water system, pharmaceuticals, urban construction, and water supply and drainage.
