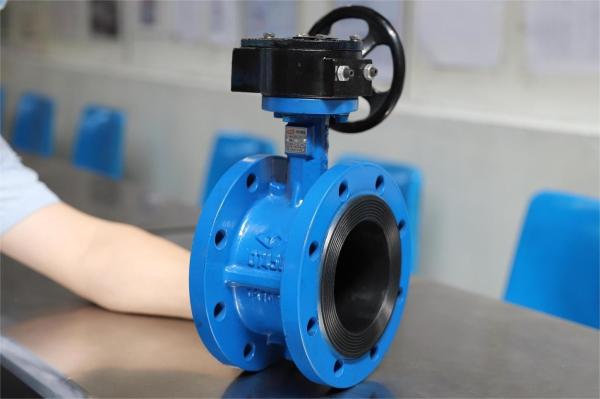

High Performance DN300 1MPa Handwheel Nodular Cast Iron Flanged Butterfly Valve

Product Usage

Flanged butterfly valve, as a component used to realize on-off and flow control of pipeline system, has been widely used in many fields such as petroleum, chemical industry, metallurgy, hydropower, etc.
The valve is easy to operate, tight in sealing performance and long in service life; It can be used to quickly cut off or adjust the flow rate. It is suitable for occasions requiring reliable sealing and good adjustment characteristics.

The use of rubber seat seal makes it suitable for lower temperature and pressure, generally not more than 80℃ and not more than PN10, but also makes it have very excellent sealing performance. Therefore it is most suitable for normal temperature liquid.

Performance Specification

Main Parts And Materials

Valve body:Grey cast iron+NBR,Nodular cast iron+NBR
Butterfly plate:QT450-10
Valve spindle: 45
D-type sealing ring:NBR+EPDM

Selection Table

Characteristics

※ Compared with other valves of the same specification and pressure grade, the flanged butterfly valve has the advantages of short structure length, small size, light weight and simple structure.
※ Quick opening and closing, easy operation, and can be used for quick opening and closing of valves.
※ It has good flow regulating function and closing tightness, long service life, and can be used as regulating valve.
※ It is suitable for large-diameter valves and widely used in large water supply and drainage pipelines.

Storage and Maintenance Cautions

• When not in use, it should be placed in a dry and ventilated room, and both ends should be covered with dust covers to ensure that the inner cavity of the valve is clean.

• When stored outdoors for safekeeping, it should be supported, not in contact with the ground, and covered with plastic film for protection.

• When the valve stored for a long time is reused, check whether the packing fails, and add lubricating oil to each rotating part.

• During use, the valve should be checked regularly to ensure its normal use, including tightening the valve packing gland nut regularly to compensate the valve stem wear.

• The valve must be used and maintained within the specified service period, including replacement of gasket, packing, sealing ring, ball (as required) and other sealing pairs.

• Keeping the working environment of the valve clean can prolong the service life of the valve.

Service Description

1. Contact us, you can get OEM/ODM customization service.

2. You can get all kinds of valves with design and manufacturing standards here, such as ANSI, API, DIN, BS, JIS and GOST.

3. For products with existing molds, 10 tons are available for order. For less than 10 tons, we can combine production with other orders.

4. If you have special requirements and large orders, we can open new molds and produce.

5. Regular products can be shipped directly from stock. Samples can be provided before shipment.
